EZHangers
EZHangers is a patent-pending floor support system designed for ICF construction. It consists of two key components: the Joist Hanger and the Ledger Hanger, which can be used together or independently, depending on the project’s configuration and design. Both hangers are installed on the ICF wall before the concrete pour. Once the concrete sets, they become permanently fastened to the structure, creating a secure and ready-to-use system for supporting joists and ledgers as part of the floor framing.
Our Story
How did EZHangers ICF Floor System came to life?
I've always been passionate about ICF construction, and in 2022, I designed my own home with the goal of building it myself using ICF. With only six weeks of vacation time, I needed to complete the ICF walls, floor, and roof systems within that window. After exploring various floor system options, I realized that completing everything within six weeks might not be feasible. That’s when I began analyzing existing solutions and exploring ways to create a more efficient alternative.
Why choose EZHangers ICF Flooring System?
The EZHangers ICF Floor Support System streamlines the construction process by reducing steps and procedures, making it faster and more efficient. Designed to minimize labor intensity, it allows a single person to set up the system, including the installation of joists and ledgers. This innovative solution not only benefits builders and contractors but also serves as a valuable tool for DIY enthusiasts.
EZHangers' Advantage
Quick and Easy to Use
1: Snap a leveled chalk line.
2: Measure and mark hanger placement.
3: Make your holes—use a drill and bit for Joist Hangers, and a drywall saw for Ledger Hangers.
4: Fasten the hangers to the wall and pour the concrete.
5: Once cured, install your joists and ledgers in their respective hangers.
No Need for Heavy, Expensive Ledger Boards
The Joist Hanger is designed to support joists directly, eliminating the need for a traditional Ledger Board.
Faster Installation, Fewer Steps
> No need to install temporary supports under the hangers before the pour—the fasteners securely hold them in place.
> Once the concrete cures, there’s no need to remove supports, install ledgers, or add additional hangers.
> Simply install your joists and get to work.
Compatible with All ICF Block Sizes
EZHangers work seamlessly with all major ICF block sizes, including 2 ½", 2 5/8", 3 ¼", and 4" thickness blocks.
Joist Hanger
The Joist Hanger set consists of 9 pieces:
– The Hanger; made of 2mm thick galvanized steel, 3 different sizes to accommodate joists of 1 ½” (38.1mm), 2 ½” (63.5mm) and 3 ½” (88.9mm)
– 4 Connection Fittings, made of 2mm thick galvanized steel. Designed as an anchor system to fasten the hanger to the concrete.
– 4 bolts: 12mm diameter, made of zinc coated steel. Comes in 3 lengths to accommodate 4 ICF block thickness (2 ½”, 2 5/8”, 3 ¼” and 4”)
Ledger Hanger
The Ledger Hanger consists of a solid galvanized steel piece of 2mm thickness. Comes in 2 sizes to accommodate 2 ½”, 2 5/8”, 3 ¼”, and 4” ICF blocks thickness.

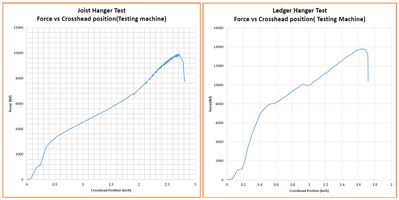

Test Results
Intertek Testing Services NA Ltd. (Intertek) has conducted downward vertical load testing for Gaets Solutions Inc, on their EZHangers ICF Joist hanger and ledger hanger in general accordance with ASTM D7147-21 “Standard Specification for Testing and Establishing Allowable Loads of Joist Hangers.”
The Gaets Solutions Inc, ICF Joist hanger assembly achieved an ultimate downward vertical load of 44.18 kN (9932.47lbf) and a load of 8.71kN (1957.98 lbf) at a test deflection limit of 3.18 mm (1/8 in.). The ICF ledger hanger assembly achieved an ultimate downward vertical load of 61.33kN
(13788.64lbf) and a load of 31.86kN (7161.75 lbf) at a test deflection limit of 3.18 mm (1/8 in.).
NOTE: The Joist Hanger test was performed using a 4 inches (foam thickness) ICF block and the ledger hanger test was performed using a 3 1/4 inches ICF block. Therefore, thinner blocks should perform better.
